Enable Any Room With Full Video In Under 90 Minutes.

Complete Video Conferencing Made Fast, Easy + Affordable

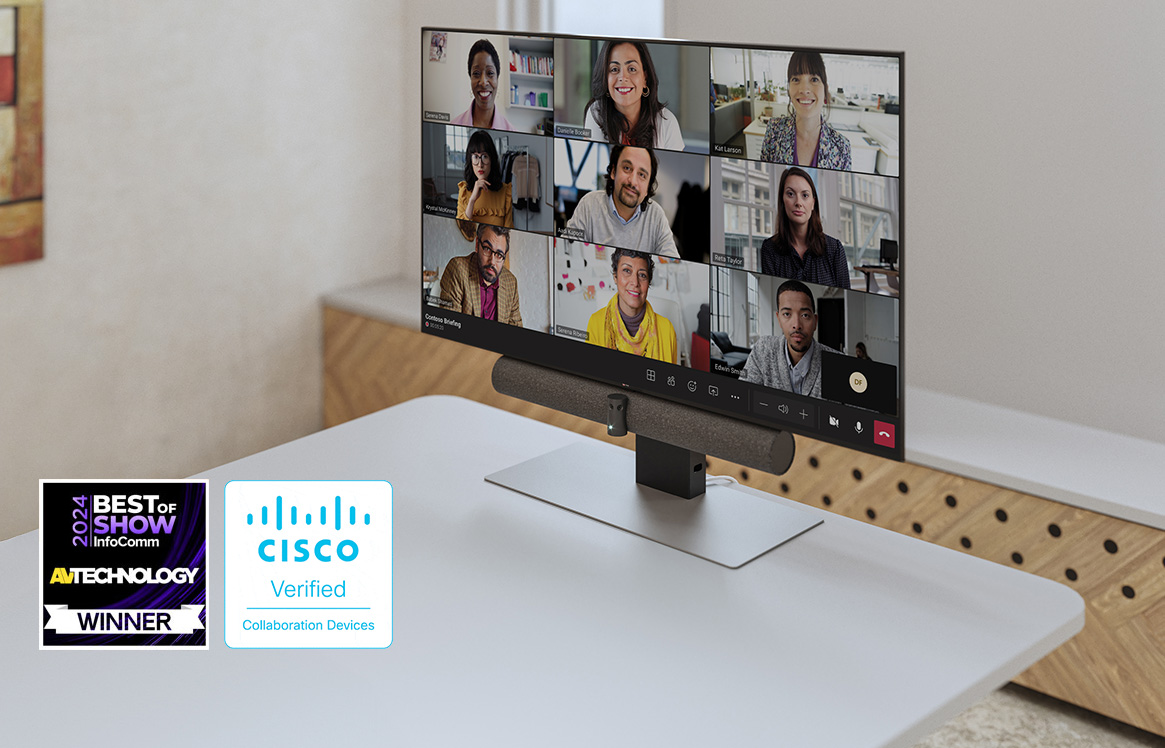

The Acadia Tabletop transforms any meeting or collaboration space with its revolutionary design. Built for Express Install with Microsoft Teams Rooms, it streamlines delivery, installation and cost—making video conferencing possible anywhere. The Acadia Tabletop sits on any table and supports displays from 43 to 65 inches. Enjoy the fastest, most simplified video solution for rooms of all sizes.

Request a Quote
Q

Close

Height Adjustable and Flexible Camera Positioning
to Support Every Team and Application

Salamander Designs was first to market with this one-of-a-kind tabletop system designed for express installations. Today, it is the most robust, rapid-deployment video solution of its kind. The Acadia Tabletop features a universal camera mount for flexible positioning above or below the display, optimizing the field of view for every team member and application. Now you can transform any room into a collaboration-ready space without tangled wires and technical headaches. With Express Install for Microsoft Teams Rooms, we’ve streamlined everything—delivering this simple, integrated solution that one person can install in about an hour and unlock a Microsoft Teams experience without the usual complexity.

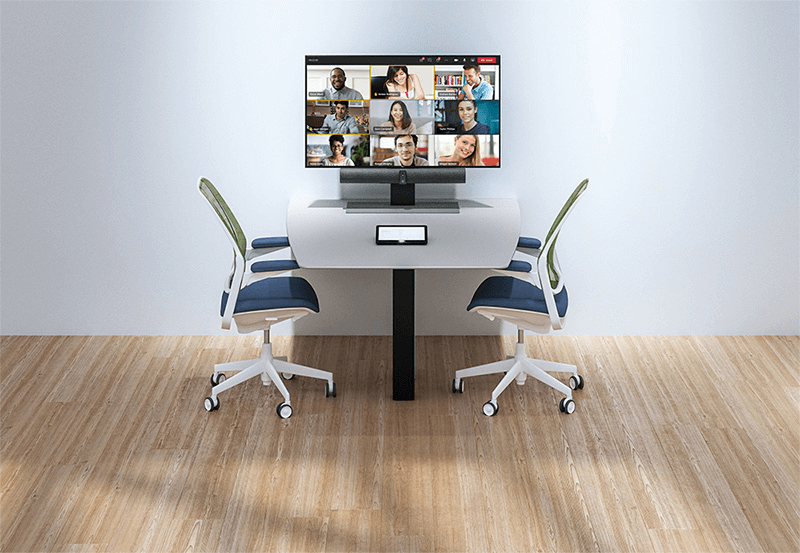

43″ Display, 1-2 Person

55″ Display, 2-4 Person

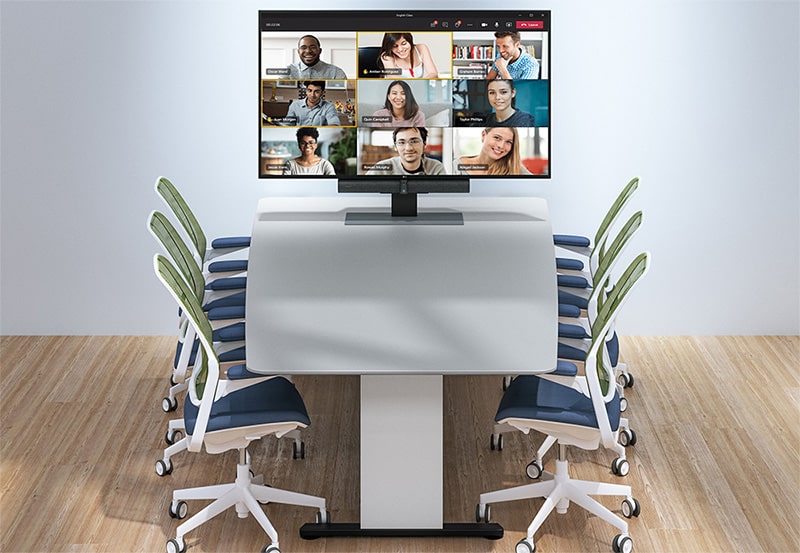

65″ Display, 4-6 Person

Supports All Technology Effortlessly

The Acadia Tabletop empowers every company to adapt to a wide variety of applications including huddle rooms, temporary setups, hybrid workspaces, traditional and permanent meeting spaces. Developed in collaboration with our top technology hardware partners, it’s compatible with all necessary, third-party technology including displays, cameras, cabling, power and more. Items not needed for viewing are tucked away for a seamless, elegant installation.

Secure and Accessible

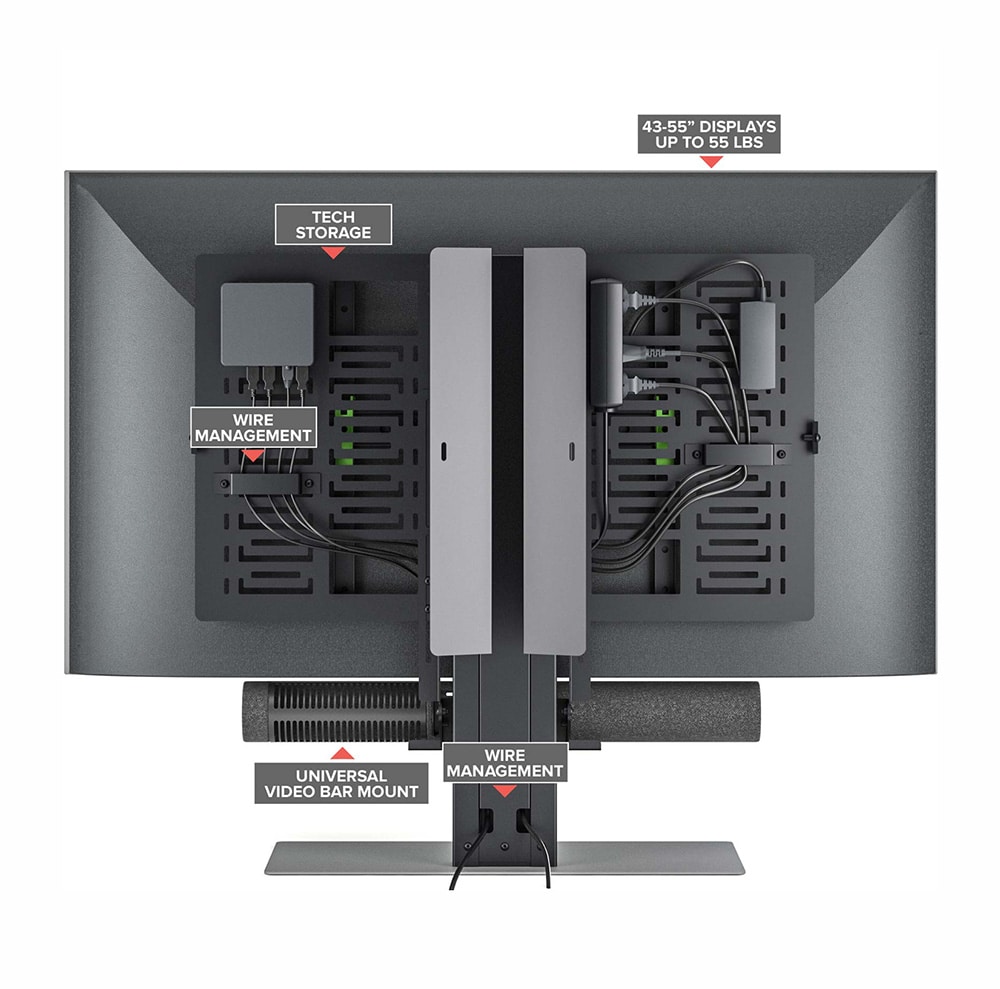

The Acadia Tabletop provides secure, spacious storage for all technology peripheral equipment and cables, with two large accessory panels on the back secured by hinged doors. This brings your AV/IT Teams fast, easy access for technology servicing.

Secure and Accessible

The Acadia Tabletop provides secure, spacious storage for all technology peripheral equipment and cables, with two large accessory panels on the back secured by hinged doors. This brings your AV/IT Teams fast, easy access for technology servicing.

Premium Grade and 98% Recyclable

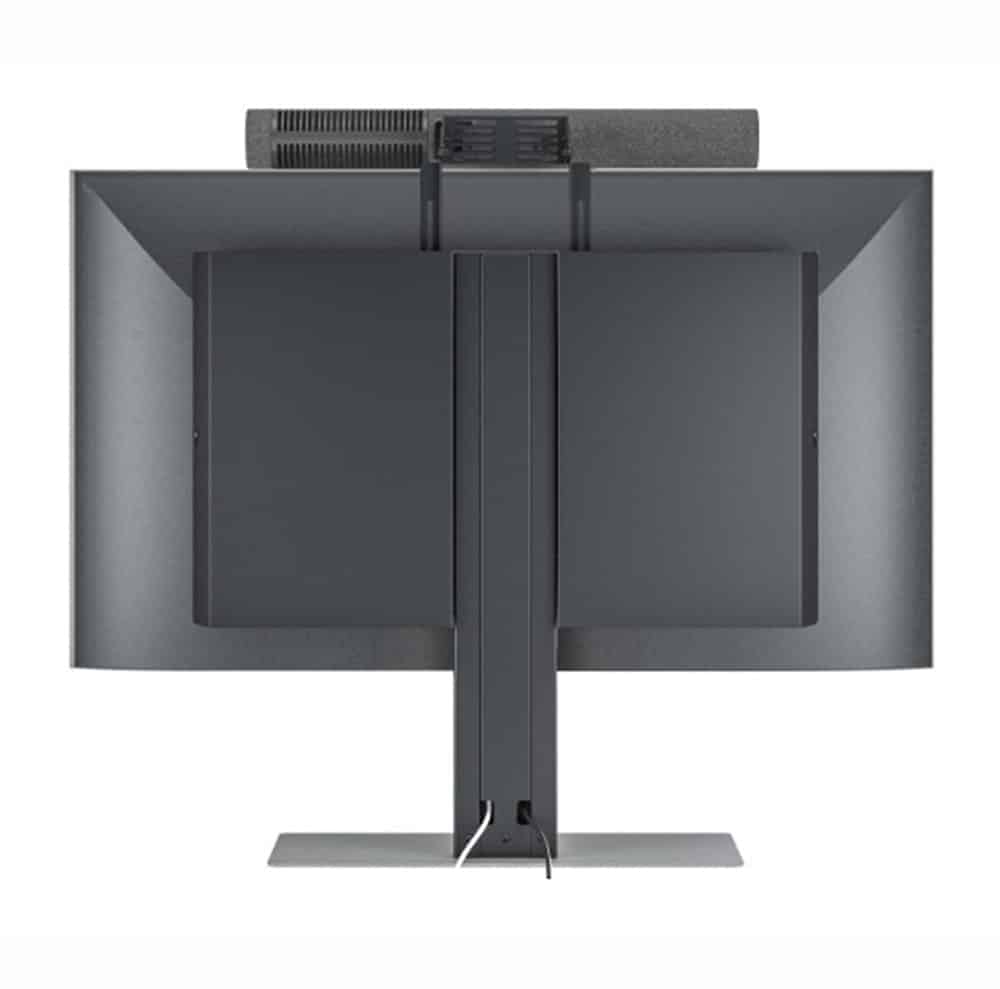

Robust and built in world-class style of Salamander Designs products, the sleek back allows for display to be mounted either by or away from a wall. Acadia is available in an elegant gray and black finish and crafted from 98% recyclable, all powder-coated, steel materials.

Table Clamp Accessory

This accessory is available for different table thicknesses from 5/16″ (8mm) to 2″ (50mm) thick and is made of heavy gauge steel with a black powder coat finish. It provides additional stability and security. Part #AC/ACC/CLAMP

Specifications

Display Mount

  • Holds 43-65”, 55 lbs (25 kg)
  • VESA Compliant 200 x 100 – 400 x 400
  • Screen Height Adjustment: (10) 1” increments

The stand is designed for displays with VESA mounting at the vertical center. Please note that the VESA mounting position on the display may be either high or low. If the display has a low mounting position, it will raise the display to an unsafe height.

Camera/Video Bar Mount

  • Max Capacity: 15 lbs (7 kg)
  • Shelf mounting pattern, 8.66”W (220mm) x 2”D (51mm)
  • Wall mounting pattern 4.9”W (125mm) x 1.18”D (30mm)
  • Tilt: +/-15°

Storage

  • (2) Peripheral Storage Panels
  • 11.2”W (284mm) x 18.3H (466mm) x 2.6”D (67mm)
  • Max Capacity of 9 lbs (4 kg) each, Total 88 lbs (40 kg)

Total Weight Capacity

  • 88 lbs (40 kg)



Downloads

Product FAQs



What screen sizes fit the stand?

  • The stand fits displays ranging from 43″ to 65″ with a maximum weight capacity: 55 lbs (25 kg).
  • The VESA mounting standard ranges from 200 x 100 to 400 x 400 in 100mm increments.

NOTE: The stand is designed for displays with VESA mounting at the vertical center. Please note that the VESA mounting position on the display may be either high or low. If the display has a low mounting position, it will raise the display to an unsafe height.

Does the tabletop stand need to be clamped to a surface? What about on a glass surface?

  • The stand is free-standing and a clamp is not required. Clamps are not recommended on glass surface.
  • For areas with high traffic or additional security concerns, a bolt-through table optional mounting is included. A clamping options is available as an accessory.

How much equipment can be installed?

  • There are 2 storage areas, each measuring 11.2″ x 18.3″ x 2.65″ with a weight capacity of 9 lbs (4kgs). The total stand capacity of 88 lbs (40 kgs)

Can the equipment overheat?

  • We cannot provide a specific answer as it depends on the equipment used.
  • Generally, the items in this type of system tend to have a low heat load, the open storage area design is open at the top and bottom to promote ventilation of the stored equipment.

Can the stand support 2 video bars?

  • The stand supports a video bar above or below the display. A 2nd camera can be installed using the after market brackets by affixing it to the display bracket.
  • Max Capacity: 15 lbs (7 kg)
  • Shelf mounting pattern, 8.66”W (220mm) x 2”D (51mm)
  • Wall mounting pattern 4.9”W (125mm) x 2”D (51mm)
  • Tilt: +/-15°

What is the total weight capacity of the stand

  • The maximum total weight capacity of the stand is 88 lbs (40 kg), including screen, video bar and equipment. Recommended maximum capacities as follows.
  • Display: 55 lbs (25 kg)
  • Camera/Video Bar: 15 lbs (7 kg)
  • Component Storage: 9 lbs (4 kg) per area

Can you adjust the height of the camera and screen?

  • Yes, both the screen and camera are height adjustable with no disassembly required. A spec sheet is available for the centerline of the VESA range.



Express Install for Microsoft Teams Rooms

Fast, Affordable and Easy to Deploy

The Acadia Tabletop offers a completely new, inspired way to quickly deploy a sophisticated video conferencing solution that can go on any table, in any space and without any construction. The Jabra, LG and Salamander Designs Bundled system is the ideal choice for today’s express installs and construction free video enablement. Contact LG to order yours as a turnkey system or contact us to order your individual Acadia Tabletop!

Salamander Designs Acadia Tabletop Stand
(#AC/TT/BP/G/B)

LG Display 43”
(#43UR640)

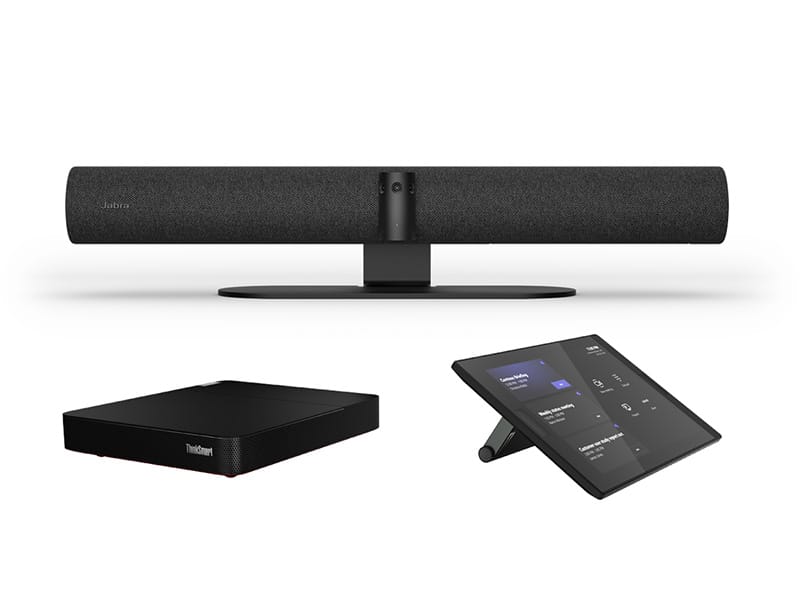

PanaCast 50 Room System MTR (#8601-332) PanaCast 50 Black with US charger – Lenovo ThinkSmart Core Kit, United States (English)
